PCBs from PCB manufacturer are often flat laminated composites comprised of non-conductive substrate materials with copper circuitry layers concealed within or on the exterior surfaces.

They might be as basic as one or two layers of copper, or as complex as fifty layers or more in high-density applications. The flat composite surface is perfect for supporting the soldered and connected components to the PCB, while the copper conductors electrically connect the components. As substrates and components, PCBs may be made from several materials. Material selection is determined by the application's requirements, as different material choices give the circuits varying qualities that facilitate performance in specific circumstances.

Designers may select materials depending on the electrical performance for high-speed applications, mechanical or thermal durability, or both - for example, automobile under-the-hood uses. Designers may opt to comply with federal regulatory regulations.

The first thing to understand about a printed circuit board is the number of layers of conductive copper that make up the stack – one, two, or more. The most prevalent are double-sided boards, which include conductive copper designs on both the front and back surfaces, with linkages between layers produced via conducting plated drill holes called vias joining one side to another. Multi-layer boards are made up of alternating layers of insulating and conductive materials that have been glued together. Circuits can create PCBs with up to 30 layers! Multi-layer PCBs are more difficult and more expensive to produce since they need extra procedures not employed in the production of double-sided PCBs.

It is impossible to forecast which trends will dominate the PCB business in the future. Individuals with clear foresight, on the other hand, have the potential to dramatically affect the future generation of electronics goods if they identify forthcoming issues and effectively create solutions to solve them. A careful assessment of the existing landscape usually yields the strongest indicators regarding what the future holds in terms of technology. As a result, let's talk about trends in the PCB industry having roots and will keep on affecting PCB manufacturing shortly.

Trends in the PCB Industry

PCBs have become increasingly common in our daily life. Consumer demands for smarter devices that monitor or manage more of the ordinary activities in which we engage, as well as industrial needs, have pushed this expansion to a large extent. Industry demands in aircraft, medical devices, automotive, and commercial electronics, for example, include increased functionality and capabilities. These requirements were accomplished through the use and development of novel materials, components, and manufacturing technologies. PCB manufacturing techniques and equipment must constantly improve to stay up with the expected trends shown below.

High-Density Interconnect PCB is the first trend.

High density interconnects (HDI) was created in response to the growing need for smaller and smaller goods with more functionality, particularly in terms of routing traces. This capacity allows for fewer PCB layers and supports the high-speed signal transfer. HDI manufacturers have difficulties in producing traces in such a way that a larger percentage of traces may be routed inside a smaller space, introducing concerns such as noise and interference. This concept's extensions, every layer interconnect (ELIC) and any layer interconnects (ALIC), should experience continuous expansion in the future years.

• High-Performance Boards (48V and higher)

There is a strong push toward higher-power PCBs. This contains boards with power supplies ranging from 12V to 48V. These voltage levels are in reaction to the increased use of solar energy, where panels generally work at 24V or 48V, and electric vehicles (EVs), where voltages can reach hundreds of volts. These high-power boards necessitate PCBs that can accommodate bigger components like battery packs. Along with this they can even deal successfully with interference difficulties.

• Internet of Things

The Internet of Things (IoT) is a multi-tiered design concept that necessitates quick (usually wireless) connectivity across layers and parts. This is the foundational technology for smart homes and businesses, as well as remote control and monitoring. Meeting the many regulations and standards that govern the creation of IoT PCBs is the key manufacturing difficulty.

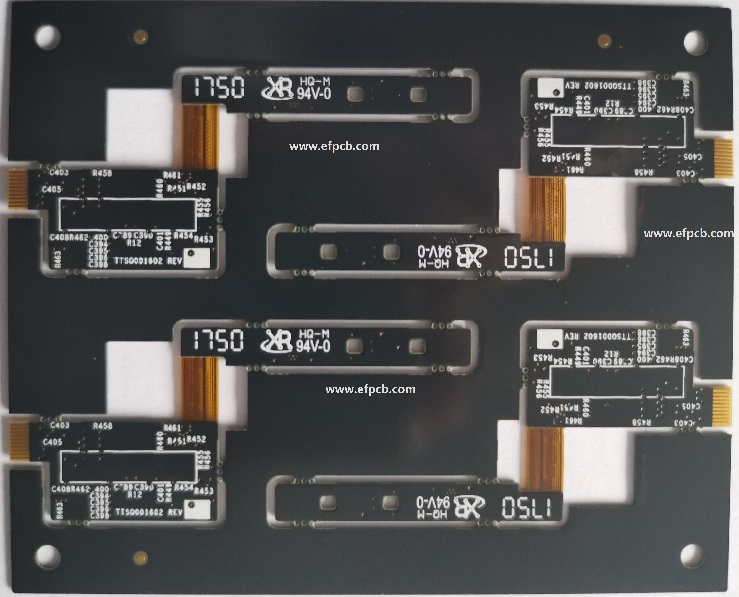

• Flexible PCBs

Flexibility and rigid-flexibility PCBs are increasing market share in PCB manufacturing at a rapid pace. Indeed, one year earlier, it was expected that one-third of all PCBs made would be flex. Flex boards offer enhanced functionality, lower size, higher dependability, and additional material alternatives. However, before you choose your components, you should be aware of the important factors that influence flex board manufacture.

• Commercial-Off-The-Shelf (COTS) Components

Another emerging trend is the usage of Commercial-Off-The-Shelf (COTS) components. The adoption of commercial off-the-shelf (COTS) components is expected to add some uniformity and dependability to the parts used in crucial space-based systems. Materials used in space production have traditionally been closely inspected; nevertheless, the commercialization of the business may result in less control of components.

• Control of the Component Supply Chain

The rising usage of electronics has also heightened awareness of the need for enhanced security. The major goal is to remove counterfeit parts from the supply chain. This is especially crucial in the production of critical systems. Advanced technologies, including virtual reality (VR) and augmented reality (AR) simulations during PCB assembly, are constantly being used to increase capabilities to solve this issue.

The preceding list covers anticipated PCB industry developments that will have a substantial influence on electronics systems and products accessible to consumers and other end-users shortly. For many years to come, these trends will guide the development of PCB manufacturing technology.

The PCB sector has a promising future ahead of it, with improved product functionality and technological advancements. But for the PCB manufacturing sector to fulfill these ambitions, procedures, techniques, and equipment must continue to advance. The top PCB prototype and low-volume turnkey producer in the sector, reputed manufacturers, are the only board maker better suited to tackle these problems. To guarantee that your design goals are met, they are committed to using cutting-edge technology and software.

The IPC Inspection Guidelines and how they apply to the PCB design, ordering, and manufacturing process should be understood by designers. Understanding these standards will assist guarantee that the resulting product satisfies your objectives for both performance and aesthetics. Not all PCBs from PCB Manufacturer are made equal.

You need to have a much better understanding of the procedures and work required to produce a printed circuit board if you've read this far.
