Get Exposed to the Major Three Steps of Flexible PCB Manufacturing

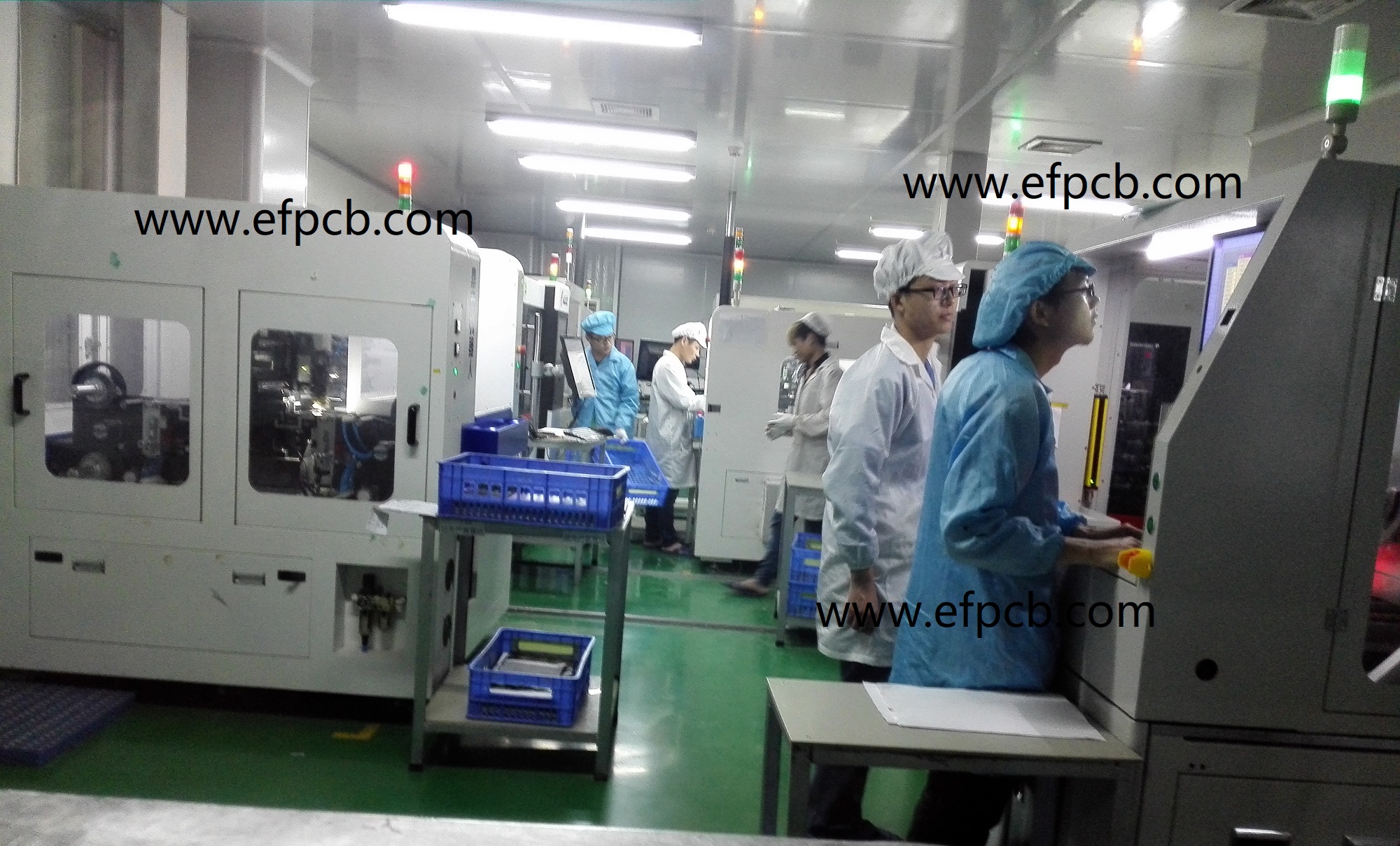

flex pcb manufacturing

Keywords: Flexible PCB, Flex Circuits Board

As the design of the main circuit itself, the manufacturing and design of a printed circuit board (PCB) is as often critical. To organize and assemble electronic circuits, compact, Flexible PCB is being used by manufacturers are increasing. One or more insulating boards are compromised by A PCB on which conductive traces of signal and copper layers have been either printed or etched. Printed circuit board manufacturing could involve anywhere from a single layer PCB to eight or more layers typically based on the circuit complexity.

Modern electronic gadgets have come a long way with the emergence of flexible PCB technology. In the core of delicate electronic products and many sensitive, they are found. Even this technology is being used by many electronic gadgets like your calculators, camera, smartphones, and laptops.

Flexible PCB

A base substrate made from polyimide material is used to make it. This material is found both synthetically and naturally. In various industries like clothing, automobile, etc it is used. As compared to the traditional rigid printed circuit boards, Considerable savings, space, and weight are offered by the compact nature of high electrical connection and flexible circuit density. The wiring use and total costs of electrical interconnections can be decreased by this technology up to 75% and 70% respectively when attached to the correct application.

In the area of electrical interconnectivity, Flexible circuits are a high-growth technology. Against the demands of many twenty-first century products, they look set to deliver enhanced performance.

Evidence of a major digital technology revolution is the advance of electronic systems into our everyday lives. Business and consumer demand for innovative products are significant, which is demonstrated by the success stories of mobile phones and personal computers. In many unanticipated ways, electronic and electrical systems are entering our lives increasingly. In the form of digital TVs and cordless phones, they can be found in our vehicles and homes in the form of telematics and hands-free communications. In the form of mobile personal data assistants and notebook computers, they are also used in business.

Flexible printed circuits have also been entering our lives within the above applications covertly and importantly. A more cost-effective and often significantly much simpler interconnection method is traditionally offered by flexible circuits employed in the role of increasingly complicated wired assemblies, replacing costly, removing the need for complex wire harnesses and wire replacement.

Moving forward, a step-by-step manufacturing process of flexible circuit boards is depicted by this article that will act as a guide for you.

Step-by-step Process of Flexible PCB Manufacturing

The method of manufacturing is structured and procedural. You need to get through the three remarkable steps of manufacturing:

STEP 1: Build Up of Flex PCB

Saving the base material is the main focus and this is the primary phase. Polyimide is the primary material used for the flex circuit. As compared to FR-4, this material is expensive and needs to be properly used. Using the nesting technique, you need to keep circuits close to each other as much as possible for appropriate usage of polyimide. The following processes are included in the prototype PCB manufacturing:

Looping: It is acceptable to add a slight amount of extra material beyond the limit of the designer. Enabling the circuit assembly and servicing length, this extra material is known as a service loop.

Sizing conductor: The greatest flexibility is provided by it.  Thus, the thinnest copper must be chosen especially when the circuit is needed to be used for dynamic applications.

Etching: in the manufacturing process, this process is done for compensating for any isotropic losses. The loss of line width is almost twice the thickness of copper foil during this process. The line width, like different types of conductor, etch mask, copper, etc are affected by several factors.

Routing: Conductor routing can be easily done. To the fold and bend, you need to get on the perpendicular position. Bending and folding will be enhanced by this by reducing stress.

Ground Planes: If the electrical allocation is adequate, Create ground areas crosshatched. By reducing the weight of the circuit board, this aids in enhancing the circuit flexibility.

STEP 2: Fabrication Process of Flexible PCB (Printed Circuit Board)

In this step, the focus will be on the Flex Circuits Board. This begins with conductor width and spacing. A standard conductor width, i.e. 375 micrometers is needed by the Polymer thin films. Simultaneously, the desired percentage of circuit current is carried by the silver-based polymer films and nominal polymer thick films. Based on the application and design, the diameters of holes in flexible PCBs can differ.

The hole Size: small holes can be created by the manufacturer and for a flexible PCB layout to be well inclined, this is also capable. You can make holes as small as possible with advanced technology.

Filleting: A technique where the stress can be divided by multiplying the area of the pad is Filleting. Filleting is needed by all the land and pads termination points on your flexible circuits. For creating a reliable solder joint, plated through-holes are appropriate.

Plating of the Button: Here, a substitute plated through-hole can be created. For preparing through-holes and vias, manufacturers use copper these days.

STEP 3: Focus On the Physical Constraints of Flexible PCB

Cover coating and cover layers problems are dealt with by the manufacturers in this process. Here are some common layers of cover that are used in this process:

Adhesive-backed films: As it consists of raw materials, it is appropriate for dynamic flex circuit apps. For over-coating custom PCB, Adhesive-backed films are used.

Overcoats of Screen-printable liquid: Along with thick polymer films, Screen-printable liquid overcoats are used generally. They are pocket-friendly.

Film polymers and Photo imaginable liquid: This is the latest over-coating method. It also has some awesome functionality as:

  • Circuits are prevented from external electrification by it.
  • From both internal and external damages, the printed circuits are protected by it.
  • The solder is prevented from circuiting traces and it acts as a solder mask.

A variety of reliability and interconnections is offered by Flexible PCB. The circuits get unique and differ from other conventional options due to this coating.
