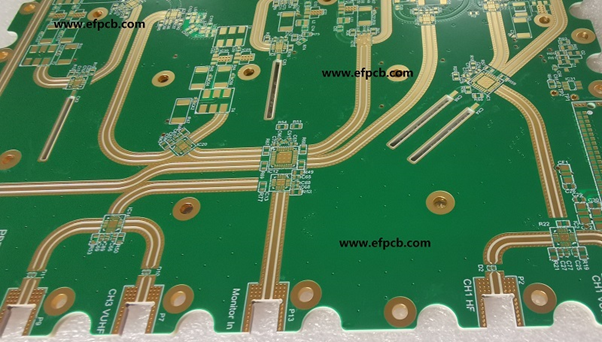

What Is Radio Frequency PCB

High-frequency PCB is called frequency PCB. The demand for top frequency is usually for wireless communication via satellites and networks. The demand for this wireless high-frequency PCB is increasing thanks to its use in ranging from all mobile networks to high-end missiles in defense. Radio frequency (RF) PCBs are often single-sided, double-sided, or multilayer structures. Because the name implies, they operate at much higher frequencies and consequently require different materials with better and more consistent electrical properties. normally terms, the PCB industry considers an RF card to be any high-frequency PCB that operates above 100MHz. RF circuit boards are used for communication signals in any application that needs receiving and transmitting radio signals. For instance, some common applications are cell phones and radar installations.

The RF frequency range is 500MHz to 2 GHz, but designs above 100MHz are considered as RF PCBs. Modern PCBs combine various digital and mixed-signal technologies, so layout and style become more difficult, especially when RF circuit boards are mixed for sub-components. RF signal will be at almost any voltage and current level at any point in time, as long as it is between your minimum and maximum limits. Radiofrequency circuit boards transmit signals at one frequency and within a specific waveband. Bandpass filters are accustomed send signals within the band of interest and separating any signals outside of this frequency range. The wavebands are often narrow or wide and maybe propagated through high-frequency carrier waves.

RF PCB Advantages and Variety

RF boards have a mess of various applications, including wireless technologies, smartphones, sensors, robotics, and security. With the arrival of recent technologies that are pushing the bounds of electronics, the demand for RF boards is on the increase. Finding a capable RF PCB manufacturer is critical to create sure the boards are fabricated to high-quality standards and on time. This high-frequency RF-PCB is created of polytetrafluoroethylene (PTFE PCB), ceramic-filled fluoropolymer, or ceramic-filled hydrocarbon thermosetting material, which has improved dielectric properties the fabric contains a low dielectric constant of two.0-3.8, low loss factor, and excellent low loss characteristics, and also has good performance, high glass transition temperature, very low hydrophilicity, and excellent thermal stability. The expansion of PTFE PCB material. The coefficient is analogous to it copper, which supplies the fabric with excellent dimensional stability.
