In many products builds, the integral part is the PCBA in China or Printed circuit board assemblies. But a significant difference to product optimization is made by tracing the right electronic manufacturing services company for creating one. On this page, the different ways EMS companies offer PCBA manufacturing services to their customers are examined, and to serve your production needs, how you can form the right partnership.

Difference between PCB and PCBA in China

Your search for an appropriate manufacturing partner won’t go unrewarded if you know the difference between PCBs and PCBAs although it seems slight.

Electronic components are connected onto a non-conductive substrate by A Printed Circuit Board or PCB. A simple PCB consists of a layer of copper foil and a flat sheet of insulating material, which are laminated to the substrate. Multiple layers are present in A PCB and electrical. Through copper-plated holes called vias and circuit traces, current passes between and around boards. Circuit traces are conducting lines made through chemical etching.

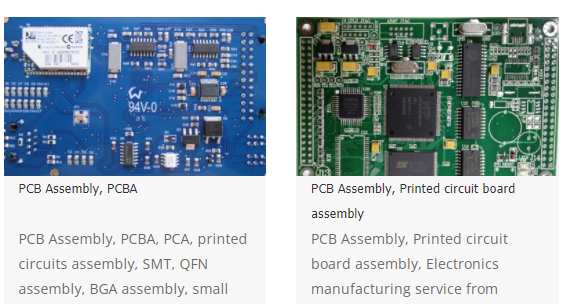

Having electronic components soldered onto it, A Printed Circuit Board Assembly (PCBA) is a PCB. A PCB becomes functional and performs the electronic task efficiently for which it was designed as a result of this. In almost every industry, PCBAs are found. PCBAs lie at the heart of technology in wearable devices, electric cars, Smart Home products, and medical diagnostic equipment that we take to be ubiquitous now.

The manufacturing process of a PCBA China

It pays to know what you can expect from a typical manufacturing process when you’re hiring an electronic manufacturing services partner to fulfill a PCBA order. For recognizing whether they can ensure reliable service that safeguards against low-quality products or production delays and fulfill your needs, you’ll be better equipped. These major steps are followed by many companies to manufacture PCBAs of the highest quality:

• Screen Printing: For establishing electrical connections, Solder paste is put on a PCB. Irrespective of the wiring board size, the Cycle time is 30 seconds approximately. This process is called stencil printing.
• Inspection of Solder Paste: For verifying if the volume of deposited solder paste complies with quality control standards, 3D optical inspection machines scan the PCB. The entire process is repeated if these standards aren’t met.
• Component Placement: Robot modules place the components listed in the Bill of Materials (BOM) on PCBs during this stage. The number of components on the PCB determines the production line length.
• Solder Melting: For melting the paste, the new PCBAs go through a tunnel reflow oven and a solder joint is formed. As the PCBA cools, this joint solidifies.
• Automatic Optical Inspection (AOI):  It is verified in this second inspection whether all the components are still on the board. The solder joint size and polarity are verified. This is a completely automated inspection.
• The PCBs are flipped and the process gets repeated for double-sided assembly. Products are subjected to a range of inspection tests before they are sent to customers. Quality assurance is prioritized while manufacturing the product and before making it available for the customers.

Difference between full-spectrum EMS support and PCBA in China

All PCBA services are not equal. These are the following reasons:

Demand fulfilling capacity: The demands of PCBA mass production might not be fulfilled by some PCBA manufacturers efficiently. Manual operations may be needed in low volume and high mix orders as well as the more complex PCBA. The ability of the company for meeting your production needs cost-effectively and reliably may be affected by these factors.

As compared to a parts supplier or EMS support, your PCBA manufacturer can be much more. You can get support from many companies in the aspects of mass production, engineering, and co-design. This indicates improvement of design on your PCBA. They also include Full Product Assembly, Box Build Assembly, Fulfillment and Testing as well as Surface Treatment and Conformal Coating.

Tips for Selecting choose a Reliable manufacturer of PCBA in China

These are the effective five tips to make a wise decision and trace a potential manufacturer of PCBA:

• Global footprint: your full market potential would be realized only by working with a company with a global footprint. They understand your potential. Work with a company that has an international presence if you are targeting to expand beyond local markets. They’ll help you design, have access to a wider knowledge platform, have deep insight into the standards of international industry, and introduce a context-sensitive product.
• Technical expertise: A better product will be delivered by a team of expert engineers with world-class technical expertise. Companies offering advanced engineering capabilities must be worked with. This ensures that your PCBA build is optimized from design to assembly at every step of the way.
• Agile Solutions of Product Lifecycle: Are advanced end-to-end product lifecycle solutions offered by the company that goes beyond PCBA manufacture? From design through to mass production, Best-in-class electronic manufacturing services can partner with you every step of the way.
• Cross-sector portfolio: For the benefit of another, processes and solutions developed in one sector can be used often. Technologies are now regularly used in robotics that was developed first for the automotive industry. An extensive and excellent technical experience is offered by an EMS PCBA company that serves multiple industries. This provides ultimate benefits for your product.
• Compliance with standards of international industry: From renewable or sustainable energy to consumer and healthcare electronics, PCBAs are used in almost every industry. You need to make sure your selected PCBA manufacturer must willing and able to comply with the electronics manufacture and international industry standards of your sector in general.

You can also consult an expert regarding what qualities you must look for while searching for an expert PCBA manufacturer. They can guide you better on how a reliable company optimizes the value of your product and what features you must look for while selecting a reliable manufacturer.

Conclusion

All major electronics have Printed Circuit Boards as their backbone. This article offers a detailed understanding of the manufacturing process of PCBA in China and finding a reliable manufacturer.
