In the area of electrical interconnectivity, Flexible PCB is a high-growth technology and to deliver improved performance against the demands of many twenty-first century products, they look set.

Considerable cost, space, and weight savings are offered by the compact nature of the high electrical-connection density and flexible circuits that they can achieve over the use of traditional wire harnesses, wire, and rigid printed circuit boards. By up to 70% and reducing wiring and cable use by up to 75%, the technology offers the potential of reducing the total costs of electrical interconnections when married with an appropriate application. It is to be noted that flexible printed circuits, in many applications, have replaced hand-built wire harnesses.

Flexible PCBs Types

Several types of flexible PCBs are available based on the application. The high-density-interconnect (HDI) flex, rigid-flex, and flex are the chief among them being.

HDI Flexible PCBs

When the options offered by typical flexible circuits aren’t adequate, High-density-interconnect PCBs are useful. By incorporating fine features such as smaller form factor, highly dense flex circuitry, micro-vias, and increased functionality are among their features HDI flex circuits offer better construction, layout, and design options.

HDI technology provides access to advanced IC package use, improved electrical performance, and better reliability although it uses thinner materials.

Rigid-Flex PCBs

Offering the best of both constructions, these PCBs are a blend of flex and rigid while adding some unique capabilities that neither possesses alone. Linked by integrated flex circuits, a typical rigid-flex configuration would be a series of rigid PCBs. Designers can greatly increase the design capability of their circuits by integrating rigid areas added to the flexible parts.

The flex areas offer flex-to-fit, vibration-resistance zones, and dynamic flexing while the rigid areas are excellent as hard mounting points for components, connectors, and chassis. For arriving at creative solutions for the most demanding applications, such blending offers designers multiple options.

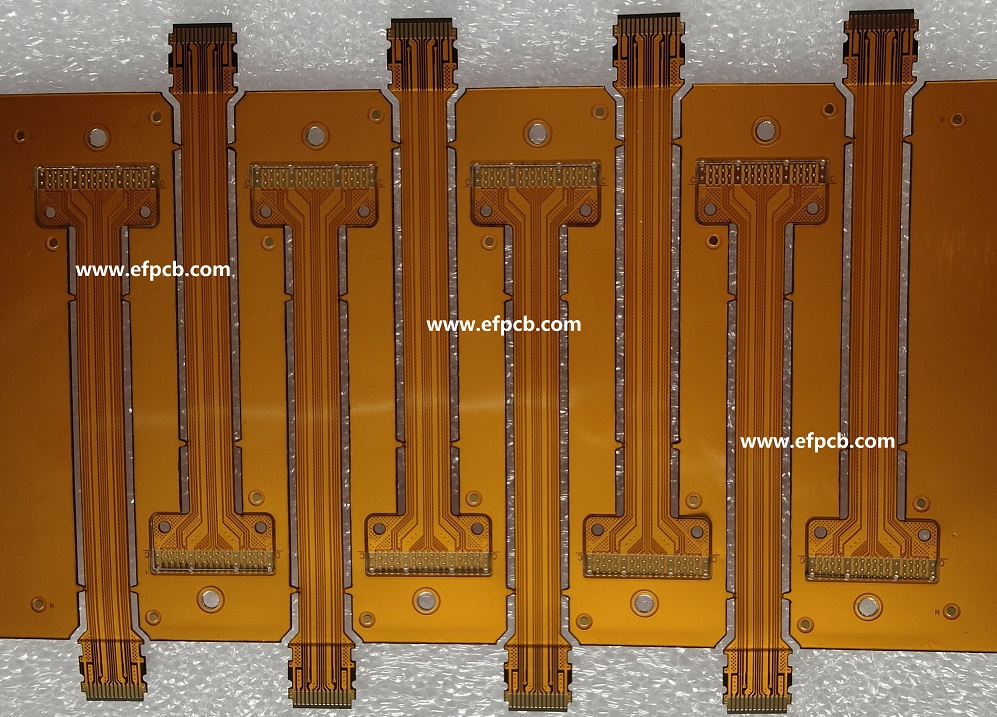

Flexible PCBs

With unique capabilities such as vibration resistance and flexibility, these are flexible versions of the commonly available rigid PCBs. Along with the usual high density, repeatability, and reliability already offered by rigid PCBs, the extra features come. Having the ability to assume three-dimensional configurations, the major benefit over rigid PCBs is flex circuits. A replacement for wire harnesses is one of the most common applications of flexible PCBs from Flexible PCB Manufacturer.

Flex Circuits Boons

Flex circuits supply customized repeatable routing paths throughout the assembly as a replacement for discrete wiring or ribbon cable. Due to their greater dependability, Flex circuits can reduce service calls.

Polyimide is used in Flex boards to cover their conductors. Protecting the circuit better than the simple solder mask is a dielectric layer. To handle a broader range of harsh environments and ambient conditions, Manufacturers use other cover and base materials.

They’re able to weather long duty cycles of flexing although flex boards can be very thin. To withstand millions of flexing cycles while carrying signal and power without interruptions, they can be made robust enough Using suitable design material.

When facing high vibration or acceleration, the high ductility and low mass of flex circuits are a huge advantage. The impact and stress on solder joints on the flex PCB and itself are far lower than that faced by the components and solder joints on a rigid PCB under the same working conditions.

Flex Circuits Uses

Where it’s impossible to use any other type of PCB, Designers shape flex circuits to fit. While exhibiting their benefits, one can think of flex circuits as being a hybrid combination of ordinary round wires and PCB. One can retain the repeatability, density, and precision of regular PCBs with flex circuits and still achieve unlimited freedom for packaging geometry.

To replace the wiring harness, Flex circuits are commonly used. To supplant several hardboards, cables, and connectors in one operation allow a single flex circuit. As it eliminates the need to wrap them in bundles and color-code wires, the assembly proceeds much faster. There are lower chances of in-service failures and rejects during assembly while installation costs come down, and Volume production levels go up.

The repeatability of wire routing increases by replacing wire harnesses with flex circuits. Reducing test times, rework, and rejections eliminates errors during wire routing. Flat foil conductors can carry more current than round wires of the same cross-sectional area and dissipate heat better and thus, the connections are more robust. The noise, crosstalk, and impedance will be better controlled as the designer decides on a more uniform conductor pattern in a flex circuit.

Furthermore, the weight or space of conventional wiring can be reduced by the use of flex circuitry up to 75%. The recurring costs of flex circuits are lower as compared to the use of wire harnesses. As compared to those incurred for hard boards, costs for replacement and repair are far lower and flex circuits are more resistant to shock and vibration. Moreover, surface-mount components can be easily mounted on flex boards by placing bonded stiffeners in required areas.

Rigid-Flex Circuits Boons

Over rigid PCBs, flexible circuits provide advantages but with more design considerations, they also come.

The use of a rigid-flex circuit is advantageous when reviewing the entire installation for the total cost of ownership, in the fact that the maximum number of components is replaced. Integration of the best capabilities of the resilient flex areas with the resistant rigid areas becomes possible by rigid-flex circuits apart from the surface-mount components being mounted on both sides of the board. This offers the maximum vibration resistance and highest capability. This combination is the best option when mounting a component with a high mass as it offers the smoothest transition between flex and rigid areas while preserving the benefits of each.

The Cost Impact

The costs generally rise with the layer count although flexible circuits are more expensive than rigid PCBs. Therefore to minimize the cost, options may have to be considered. For instance, as compared to using one four-layer circuit, two double-layer circuits could turn out to be less expensive.

In favor of Flexible PCB, other factors may lower the overall cost. For instance, layers and space can be saved by the ability to fold a flexible circuit. Significant overall savings can be achieved by Time invested in project assessment based on the situation.
