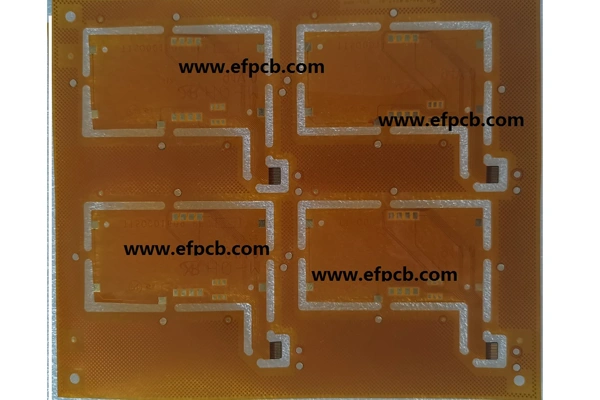

The demand for flex PCBs (flexible printed circuit boards) is growing in mobile industries such as telecommunications and automotive, and in the life science areas of medical devices because of their light weight, small size, and flexible structure. To offer more mechanical strength to the flex PCB manufacturers would add PI stiffener. PI, or polyimide, is a high-performance polymer with outstanding thermal, electrical and mechanical properties. By inserting PI stiffener in the flex circuit, one can achieve protection and reliability of a rigid-flex PCB, and still preserve circuit flexibilities.

As an expert flex PCB manufacturer, we start off with precision and repeatability. Due to its flexibility and thermal resistance, it is usually manufactured with polyimide film as the substrate rather than rigid materials. The production process consists of stacking copper foil on the polyimide substrate and then applying etching, drilling and laminating processes to form the required circuitry. Mechanical one crucial aspect of production is mechanical strength of the board itself, especially the high stress or bending places on the board. Enter PI stiffeners. These stiffeners are selectively applied to certain areas of flex PCB, such as connector and solder points, or any other areas that need to be protected, without sacrificing the flexibility of the design.

Stiffeners such as PI stiffeners are a significant part in flex PCB production. They have a couple of purposes, from some of them are:

• Stronger durability PI stiffeners add reinforcement to high mechanical stress areas such as corners, making sure the PCB is not broken after multiple bending or flexing.

• Better Heat Resistance: As a flex PCB manufacturer, we realize how important heat management is. PI Stiffeners dissipate heat well, thus suitable for high-temperature situations.

• Solid Soldering Support: PI stiffeners offer a solid foundation for soldering parts, helping to prevent damage throughout the assembly process and while in use.

Applying PI stiffeners in one Step – require special Skills and Equipment. Adhering the stiffener to the flex PCB is a matter of bonding the stiffeners to a certain region with an adhesive or by heat lamination process. The bonding agent should be selected carefully for a tight bond that should not have an adverse effect on the electrical functioning of the PCB. We are professional Flex PCB manufacturer with advanced equipment and rigorous quality control so that the PI stiffeners are precisely aligned and tightly bonded. This ensures high performance and reliability even in the most challenging of applications.

We are proficient in producing high quality with best precision and reliability. Utilizing the latest technology and materials, we make sure that each product is compliant with industry standards and satisfies customers around the world. From consumer electronic devices to industrial ones, we would be able to help you ensure the best durability and performance with our expertise incorporating PI stiffeners.



To sum up, Flex PCBs with PI Stiffeners are the best option for those who want to use flexible electronics that can meet the demands of flexibility, durability, and heat resistance. Working with a professional flex PCB manufacturer gives you confidence that your products will be designed and made to the highest quality.
